> For the complete documentation index, see [llms.txt](https://malbersanimations.gitbook.io/animal-controller/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://malbersanimations.gitbook.io/animal-controller/secondary-components/zones.md). # Zones ## Overview Zones are Triggers that Enable Logics on the Animal, like Jump, Actions, Deaths... etc. Once an animal Enters a Zone it can be activated via Input or Automatically.

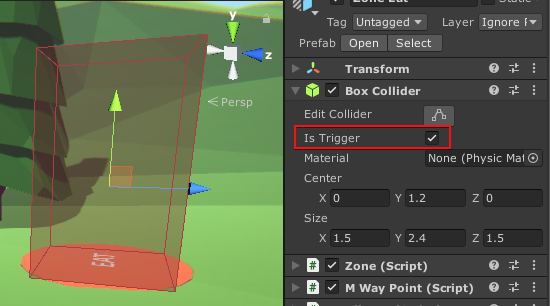

## Requirements * A zone requires any type of **collider** set as **Trigger.** ![](/files/-M5DhN52jUD5JGFDfxpy) * The Layer set on the GameObject must be different from the Layers set on the [**Ground Layer**](/animal-controller/main-components/manimal-controller/general.md#ground-layer) in the Animal Controller. Usually is set as **Ignore Layer** ![](/files/-M5DhZAEILUPebrxvpqy) {% hint style="danger" %} ### The Animal needs to have any type of collider and a rigid body to interact with the zone {% endhint %} ## Properties ### Automatic As soon as the animal enters the zone it will activate the zone logic. If set to false you need to manually call: Zone.Activate() ### Disable After Used Disables the zone after it's used 1 time. ### Limit How many characters can use this zone at the same time. If set to a negative value (-1) then it has no limit. ### Trigger As above, which collider is the trigger for the zone to activate ### Layer Which layer should be used to detect the animal ### Zone Type A zone can modify a [**Mode**](/animal-controller/main-components/manimal-controller/modes.md), Force, [**State**](/animal-controller/main-components/manimal-controller/states.md)**,** or [**Stance**](/animal-controller/main-components/manimal-controller/stances.md) on an animal, depending the Action set in the Zone.

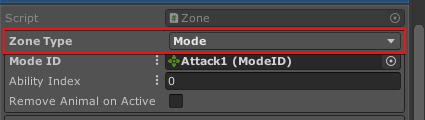

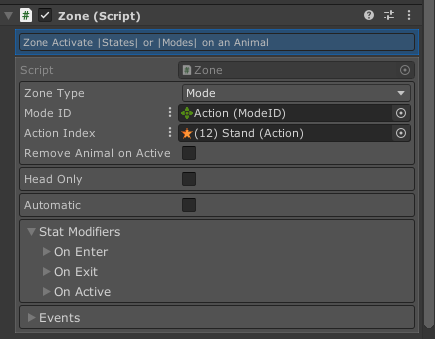

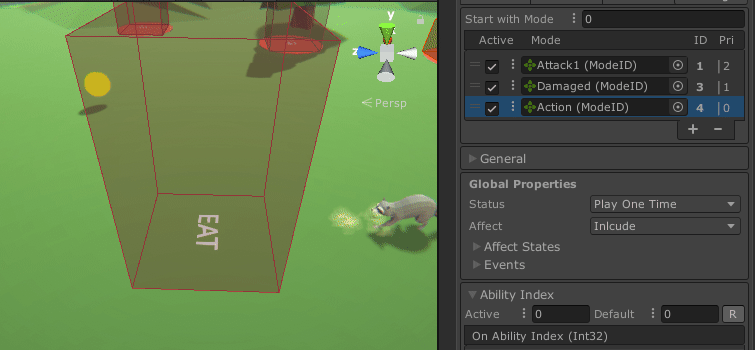

## **Type: Mode** ### **Mode ID** Which Mode ID should activate ### **Ability Index** Which ability should activate. See the [**Modes**](/animal-controller/main-components/manimal-controller/modes.md#abilities) documentation for more information {% hint style="info" %} When the [**Mode** ](/animal-controller/main-components/manimal-controller/modes.md)is Set to Action, the **Ability Index** Parameter it will automatically change to **Action ID** to help you better which [**Action Index**](/animal-controller/scriptable-architecture/scriptables/scriptable-ids.md#actions) to play on the Animal {% endhint %} ### **Status** How should the Mode be played?
### Mode Power Value assigned to the mode float value when using the zone ### Force Mode Plays a mode no matter if a mode is already playing ## **Type: State** When the Zone is set to [**State**](/animal-controller/main-components/manimal-controller/states.md)**,** The animal will automatically make an **State Action** if it enters the Zone Trigger**.** ### **State ID** ID of the State to modify e.g. Fly, Death etc.

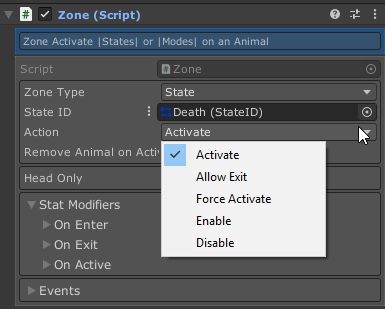

### On Enter/Exit The zone can have different enter and exit actions:

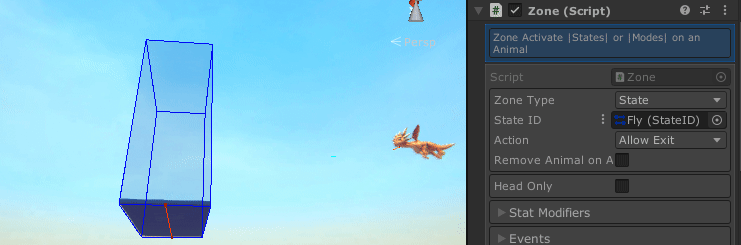

### Activate Activate a State on an Animal. ![Horse dies (Activates Death) when it touches the Death Zone Trigger](https://lh6.googleusercontent.com/t6CdKaeHo60lasyeFPHCXDgDqVAHk_okpUn_H60u0XMF4wwP956qBSHRyqn0FiBYsICjIlbhQanh5cTsGdB8LX0I411LAFrWWPv4WDmZAbGTd-MkqRUja9iM2pmZB5DdfrZA_Prj) ### Allow Exit Some States cannot exit on their on because some conditions may need to be completed. Calling the Method: **State.AllowExit()** on the Animal permits the state to exit and other **states** with lower priority to try to activate themselves. For Example: A character is Flying; then enters A **Fly State Zone** with **Allow Exit** set, this will allow other States like **Fall** to be activated since the **Fly** State is allowing lower priority states to be active. ![The Dragon Exit Fly when entering the Fly Zone with (AllowExit), allowing Fall State to be activated.](/files/-M5DssrBidNgGCxfvLj0) ### Force Activate Some States **cannot** be activated on their on, because it may require some conditions to be completed. This action forces any state to be Active. E.g.: The Swim State can only be Activated if the animal touches the water. but it can be forced using this action. ### Disable Disable a State on an Animal. E.g.: you can have a *Jump State Zone* to Disable the **Jump State** when a character enters a room. ### Enable If a State on an animal is Disabled, it will enable it back. E.g.: you can have a *Jump State Zone* to Enable the **Jump State** when a character exits a room. ### Set Exit Status Sets the Exit status on the Animator to be true ## Type: Stance When the Zone is set to [**Stance**](/animal-controller/main-components/manimal-controller/stances.md), The animal will automatically make an **Stance Action** if it enters the Zone Trigger**.**

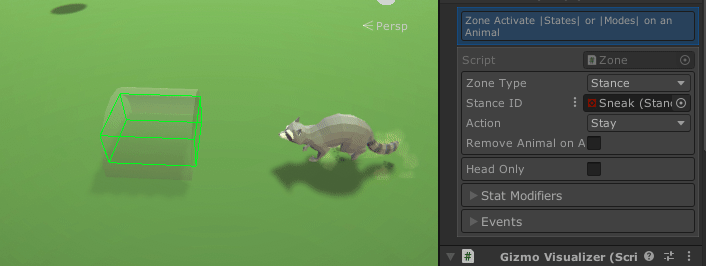

### **Stance ID** ID of the Stance to modify. ### On Enter/On Exit The zone can have different enter and exit actions. ### Activate On **Entering** the Trigger Zone: the [**Current Stance**](/animal-controller/main-components/manimal-controller/stances.md#current-stance) on the Animal will be equal to the Zone [**Stance ID**](/animal-controller/secondary-components/zones.md#stance-id). ### Exit On **Exiting** the Trigger Zone: the [**Current Stance**](/animal-controller/main-components/manimal-controller/stances.md#current-stance) on the Animal will be equal to the Zone [**Stance ID**](/animal-controller/secondary-components/zones.md#stance-id). ### Set Default Set's the default stance to the stance specified in the StanceID ## Type: Force
### Force Amount of Force that gets applied to the animal ### Enter Acceleration Acceleration to apply the force when the animal enters the zone ### Exit Drag Set a value for the drag applied when the animal exits the zone ### Limit Force Set a limit for the total amount of force to apply ### Air Control Can the animal be controlled whilst in the air? ### Grounded Changes if the animal is grounded when entering the force zone ## Other Parameters ### Weight Probability to activate the zone when entering the zone 0 - 1. \ 0 = 0%. 0.5 = 50%, 1 = 100%. ### Angle Limit the activation of the zone from certain angles only ### Reset on Active Removes the stored Animal on the zone when the zone is activated, resetting it to it's default state ### Tags Set this parameter only if you want the zone to activate with certain gameobjects with tags. ### Bone Only Activate when a bone enters the zone. The bone needs it's own collider. ### Bone Name Name of the bone to check if Bone Only is true. ## Events ### On Animal Enter Zone Invoked when the Animal Enters the Zone Trigger ### On Animal Exit Zone Invoked when the Animal Exits the Zone Trigger ### On Zone Active Invoked when the Animal Activates the Zone ### On Zone Failed Invoked when the zone fails to activate for whatever reason e.g. the wrong animal walks into it
