Selector Editor

Overview

This Script manages the distribution of all items. it can be Radial, Linear, Grid or Custom. Set the correct position of the Selector Camera and add some offsets.

This script only works on the Editor, when the game is running this script automatically is disabled.

Parameters

Selector Camera

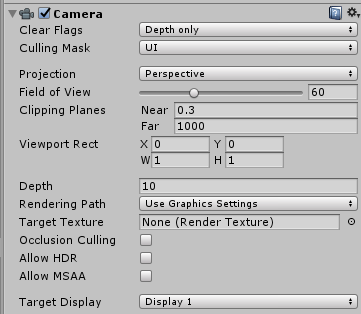

Is the Camera used for the selector items.. this camera should have this settings:

Being Clear flags to Depth Only, and on the Culling Mask just the UI Layer Mask.

World Spacing

If this option is selected, then The camera is no longer child of the Selector. It should be child of the Main Camera, Use this when the the Selector on the hands of a character, on VR mode, etc.

Offset

Camera Forward Axis Offset.

Position

Offset for the Camera Position

Rotation

Offset for the Camera Position

Selector Type

Specifies the Items Distribution.

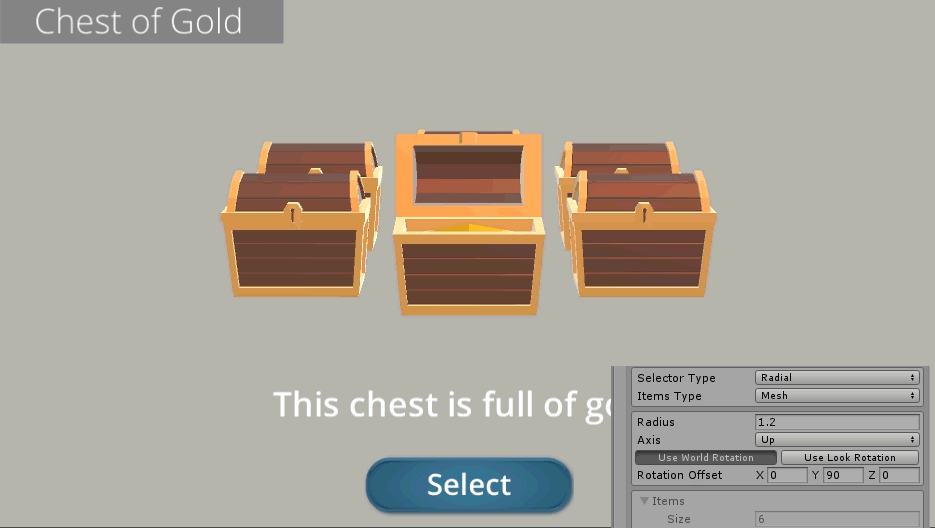

Radial

Distribute the items on a circular pattern.

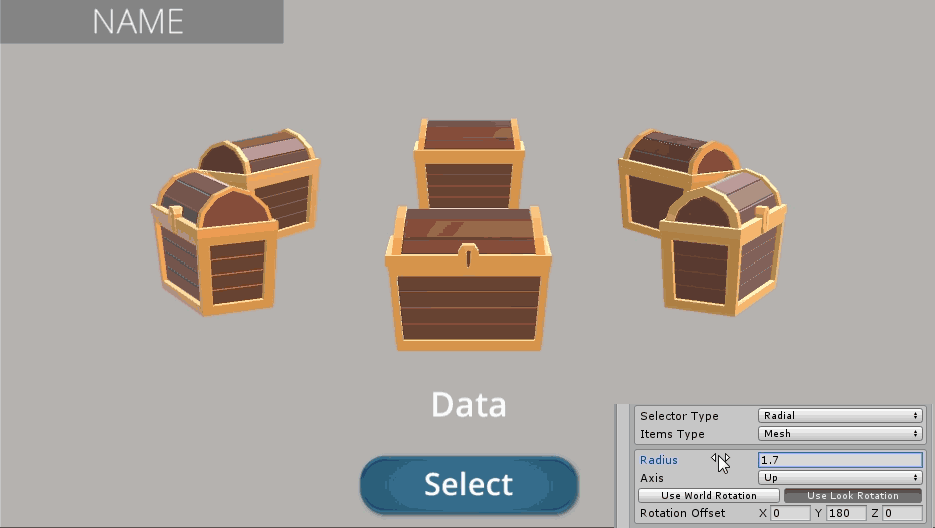

Radius

The radius of the Distribution.

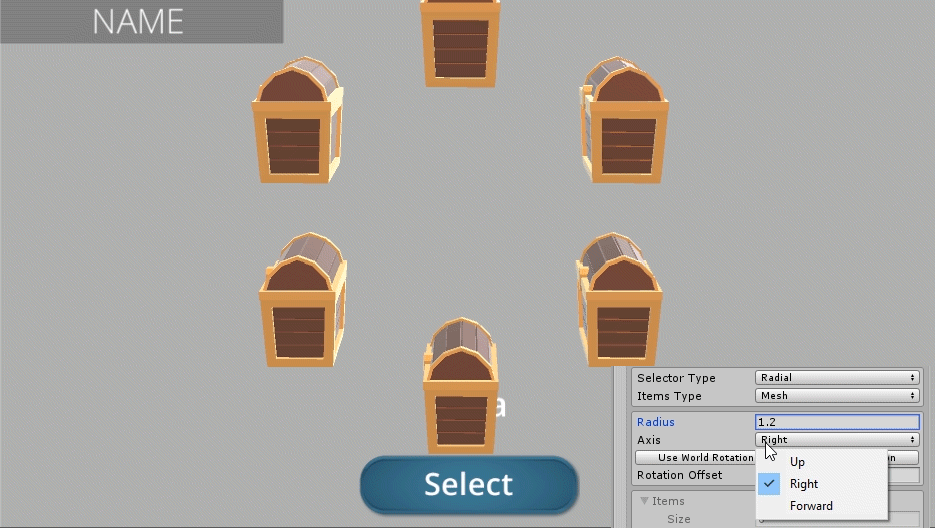

Axis

Direction Vector to distribute radially the items. (X -Right ,Y - Up ,Z - Forward).

Use World Rotation

The Items will keep the same initial Rotation (always facing the same direction) when changing the focused item.

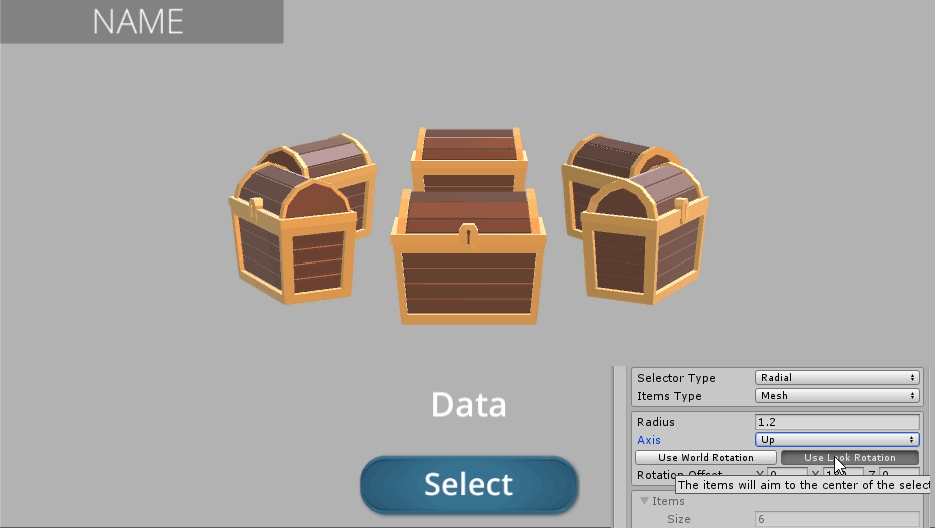

Use Look Rotation

The items will look to the center of the selector.

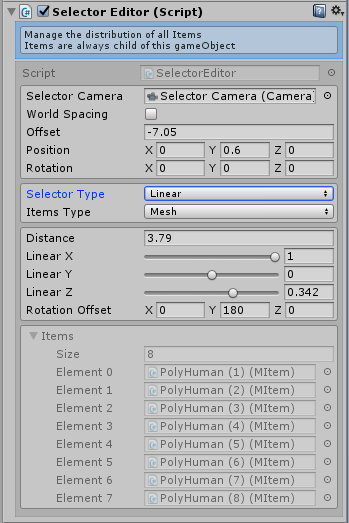

Linear

Distribute the items on a linear pattern.

Distance:

The distance between items.

Linear X, Y ,Z

Axis multipliers for the items distances.

Grid

Distribute the items on a grid pattern.

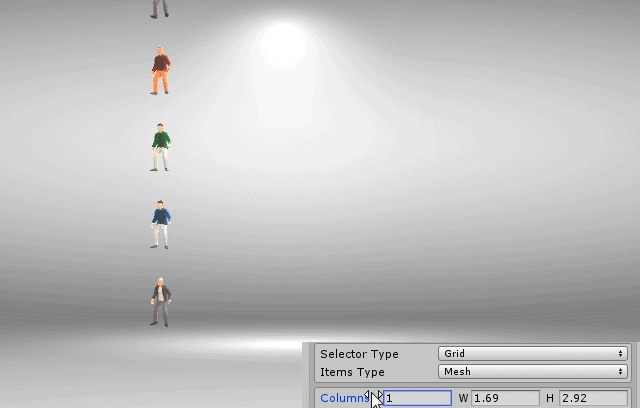

Columns

How many columns have the grid.

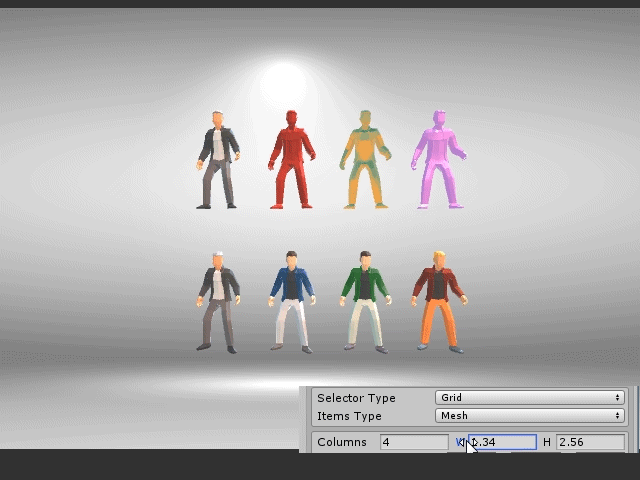

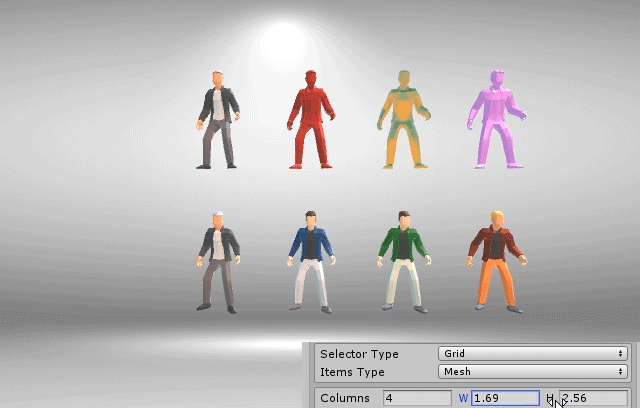

W (Width)

The width of the grid

Height

The Height of the grid.

Custom

Items Type

Specifies the Items Render Type, if is Mesh, Sprite or Canvas. This allows to use the proper selection for the items. Set the one that fits your game.

Rotation Offset

Add an extra rotation offset to the Items

Items

This is just for visual purposes, it shows the list of the items on the selector
